Sinotruk HOWO Engine Assembly Wd615.47 371HP Factory Price
Product Introduction
The Sinotruk Wd615.47 is a high-performance diesel engine with a 10L displacement and V6 configuration, delivering 371HP power. Its W-type design ensures efficient operation, meeting Euro 2 emission standards, ideal for heavy-duty applications.
Key Specifications
| Model | Wd615.47 |
| Fuel Type | Diesel |
| Horsepower | 371HP |
| Displacement | 10L |
| Emission Standard | Euro 2 |
| Engine Weight | 850kg |
Limited Time Offer
Enjoy fast delivery within 3-7 days and flexible payment terms (T/T 30% in advance). MOQ is only 1 unit. Don’t miss out on this high-quality engine at great conditions!
Basic Info.
Packaging & Delivery
Product Description
Sinotruk HOWO Wd615.47/87/69 Truck Engine
Tech Parameters
|
Model
|
WD615.62
|
WD615.87
|
WD615.69
|
WD615.47
|
WD615.57
|
|
Type
|
6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
|
||||
|
Ignition sequence
|
1-5-3-6-2-4
|
||||
|
Valve / Cylinder
|
2
|
4
|
|||
|
Distance between cylinder core(mm)
|
150
|
||||
|
Bore & Stroke(mm)
|
126×130
|
||||
|
Displacement(L)
|
9.726
|
||||
|
Compression ratio
|
17:1
|
17.5:1
|
|||
|
Rated power KW(HP)
|
196(266)
|
213(290)
|
247(336)
|
273(371)
|
302(410)
|
|
Rated speed(r/min)
|
2200
|
2100
|
|||
|
Max. Torque(N.m)
|
1100
|
1160
|
1350
|
1500
|
1650
|
|
Speed at Max. torque(r/min)
|
1100~1600
|
||||
|
Idling speed(r/min)
|
600±50
|
||||
|
Specific Fuel consumption(g/kW.h)
|
≤193
|
≤191
|
|||
|
1m Noise dB(A)
|
≤98
|
||||
|
Bare mass(kg)
|
850
|
||||
|
Emission
|
Euro2
|
||||

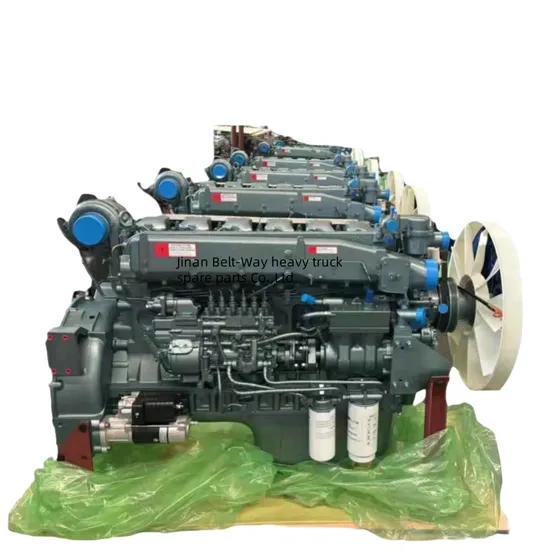

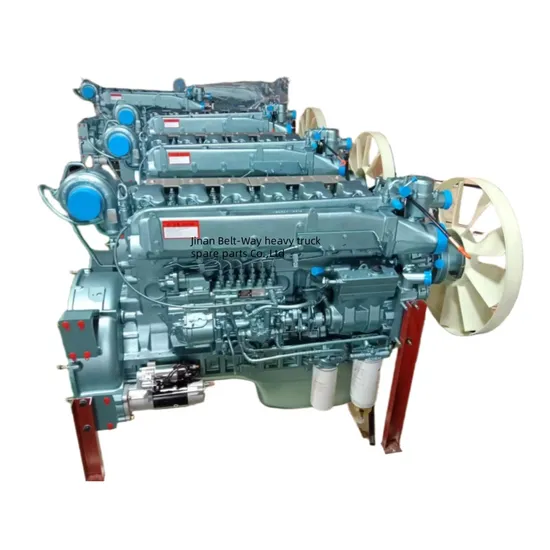

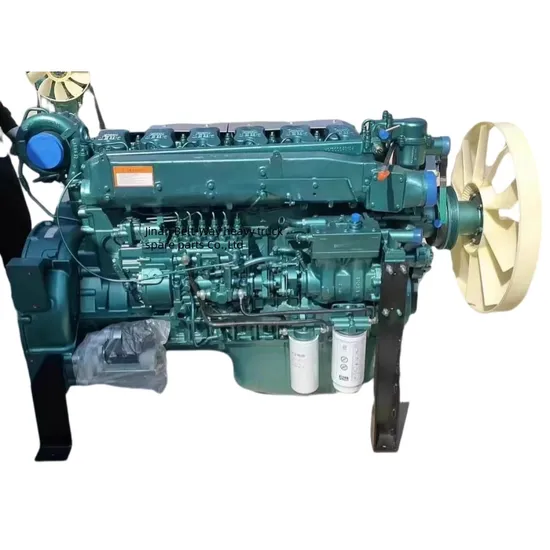

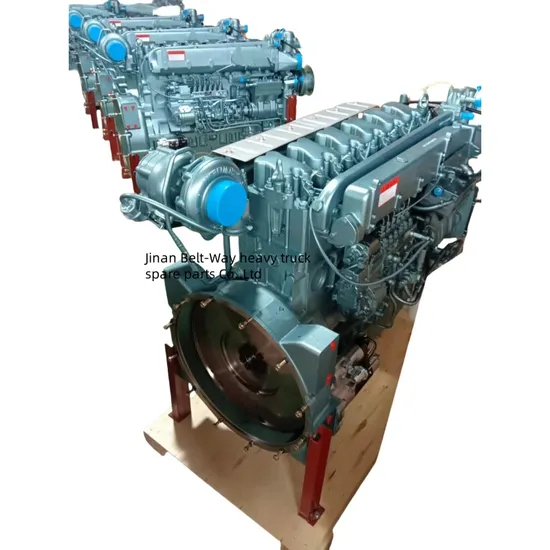

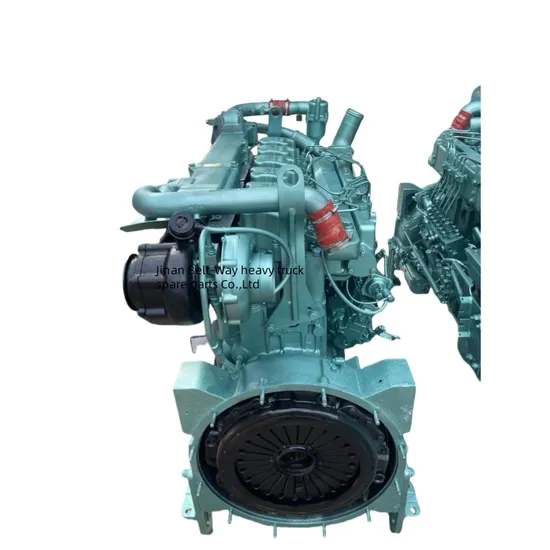

Engine display
Engine Spare Parts
What can we supply?
1.Sinotruk/Weichai engine parts
Crankshaft, connecting rod, cylinder block, cylinder head, piston,flywheel, cylinder liner,piston ,piston rings, piston
pin,connecting rod,bearing, crankshaft bearing ,intake&exhaust valve, valvesprings,camshaft, tappets, camshafts bearing, fuel
tank, fuel pump, fuel filter,air filter, oil filter, battery,alternator, starter, starter motor, ignition coil,water pump,
radiator, fan couplings, fan, thermostat, oil pump,pressure limiting valve ..
Primary shaft, 2nd shaft, intermediate shaft, 2 / 3 associated gear,2nd speed gear(1/2/3/4/5) , reverse gear ,intermediate
shaft(1/2/3/4/5),synchronize assembly, synchronizer slider,gearbox ,gearbox shell, gearbox cover, gearbox middle cover, shift fork
assembly, PTO…
3.Chassis parts
Clutch cover, clutch disk , wheel hub, brake drum, brake pads ,Brake shoes, lock, wiring harness, drive shaft, front axle,
steering knuckle,steering arm, universal joints, rear axle , main reducer,differential,axle, planetary gears, sun gear, pinion and
bevel gear, spring, shock absorbers, stabilizer bars,steering pole, straight rod, rod joint, wheel reducer, through axle, rear
shell … ..

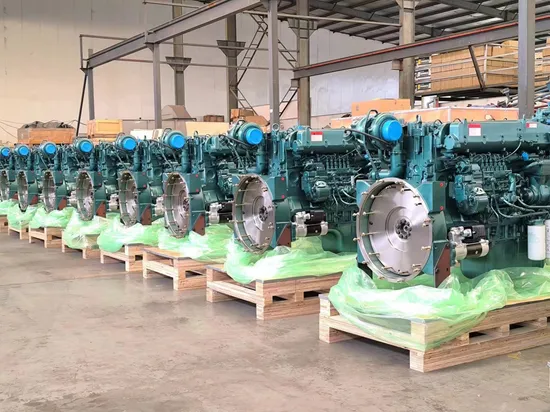

Workshop
Our Company
Belt Way International Trading Co.,Ltd. was founded in 2008. Specializing in the production and sales of various auto parts. With the spirit of continuous innovation and excellent technical concept, Beltway focuses on the development and improvement of products, and is committed to providing the best quality products to meet the various needs of customers. Technology creates the Future,.look forwarding your inquiry.
Certificates
Packaging & Delivery
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in Carton boxes and then in wooden case.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CPT, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
Вопрос: каковы ваши условия упаковки?
A: Как правило, мы упаковываем наши товары в нейтральные коробки и коричневые коробки. Если у вас есть законно зарегистрированный патент,
мы можем упаковать товар в ваши фирменные коробки после получения ваших авторизационных писем.
Q. как насчет вашего времени доставки?
A: Как правило, это занимает от 15 до 30 дней после получения авансового платежа. Конкретное время доставки зависит
на предметы и количество вашего заказа.
Q. Можете ли вы производить по образцам?
A: Да, мы можем изготовить по вашим образцам или техническим чертежам. Мы можем построить формы и приспособления.
Q. Проверяете ли вы все свои товары перед доставкой?
A: Да, у нас есть 100% тест перед доставкой
Вопрос: как вы делаете наш бизнес долгосрочные и хорошие отношения?
A: 1. Мы сохраняем хорошее качество и конкурентоспособные цены, чтобы обеспечить нашим клиентам выгоду;
2. Мы уважаем каждого клиента как нашего друга, и мы искренне ведем дела и дружим с ними,независимо от того, откуда они берутся.
