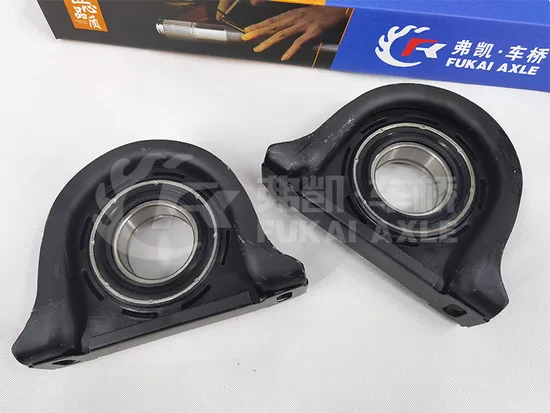

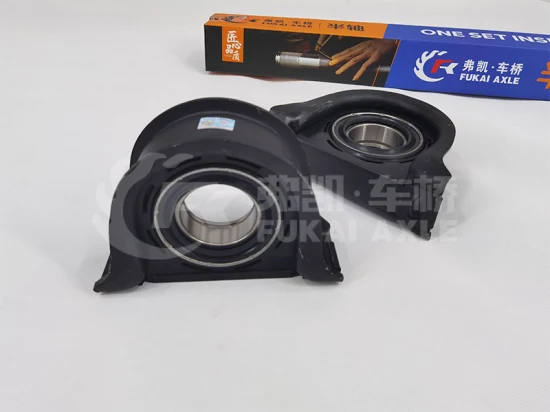

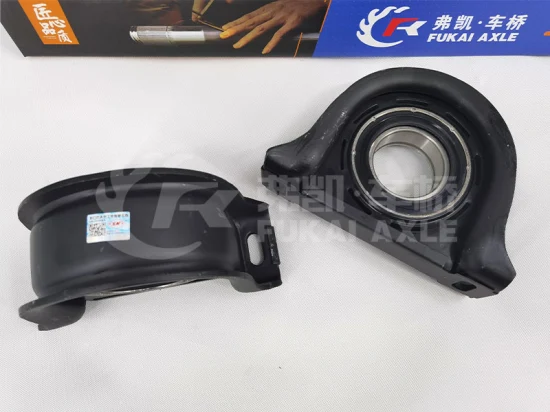

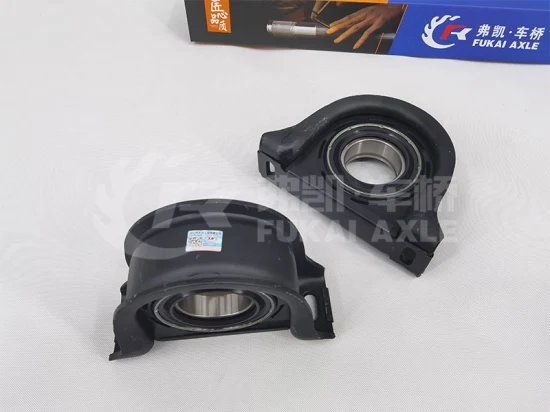

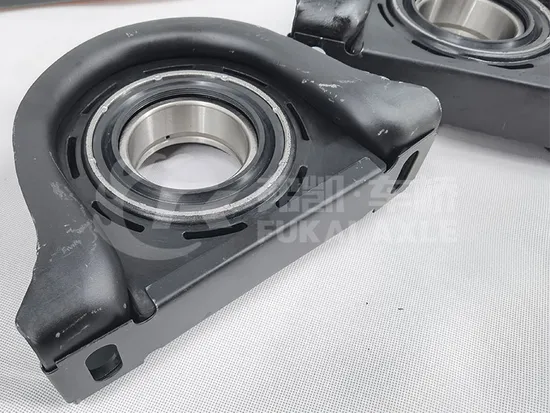

P26013314030-70 Propeller Shaft Hanger Factory Price for Truck

(1)Original supporting parts
(2)Factory outlet

What do you know about “propeller shaft hanger”?

In our life, the central hanger of transmission shaft is generally used for trucks, but not for small cars. The reason is that the distance between the transmission main shaft of small cars and the driving gear shaft of rear axle reducer is short, and a set of transmission shaft assembly is used for connection. Therefore, the central hanger of transmission shaft is not set, while the distance between the drive shaft and driven shaft of trucks is far, and the transmission shaft has a connecting part, so the central hanger is used.


So where is the hanger generally installed?

Generally speaking, the central hanger is located in or under the beam in the frame. Some hangers are sleeved in the beam with bolts, and some are hoisted under the beam. The hanger has double sets of ball bearings and a bearing seat, and rubber ring pads of different shapes are attached between the periphery of the bearing seat and the hanger seat hole. The front end and rear end of the hanger can be positioned by the micro drive shaft, and the front and rear center of the hanger can be transmitted axially at the same time.


The damage of the transmission shaft center hanger is mainly affected by three aspects

First, affected by the damage of hanger bearing. The reason for the damage of the hanger bearing is the lack of lubricating grease in the bearing, which leads to increased wear and open space. Another case is that it has not been repaired for a long time, resulting in loose rotation of the bearing outer diameter and seat hole, and the rubber ring around the bearing seat is broken and falls off, resulting in the runout of the transmission shaft in the hanger, resulting in the fracture of the lower half of the hanger, the fracture of the bolt and the fracture of the bolt joint.

Second, it is affected by the damage of transmission shaft components. The reason for the damage of transmission shaft components is that the front and rear transmission shaft flange fork, universal joint shaft fork and expansion fork are deformed, resulting in the axis swing difference during the operation of the whole transmission shaft, the lack of lubricating grease of the cross shaft, resulting in loose wear, and the loose wear between the sliding groove and the groove of the expansion fork. Make the clearance of the whole transmission shaft increase and produce axis shimmy during transmission, and the central hanger is affected by its vibration for a long time, resulting in lower fracture.

Third, it is affected by its quality, material and structure. The central hanger of the transmission shaft always maintains the central support of the bearing seat type on the middle cross beam. The material is cast from malleable cast iron, which is only suitable for trucks with relatively low tonnage. The cast hanger is easy to produce fracture layer due to improper process, loose metal or pores, brittle material, etc. During maintenance and installation, due to the improper method of fastening bolts, the hanger or hanger cover is not installed evenly and balanced, so that the hanger or hanger cover is tilted and the pressure is concentrated, resulting in fracture, resulting in fracture of the hanger.

When the central hanger of the transmission shaft is broken, the front and rear transmission shafts will be disjointed at the expansion fork, resulting in the failure of the running vehicle. At this time, there are great potential safety hazards. Therefore, the central hanger of the transmission shaft should also be overhauled regularly to prevent accidents.

Q1. Are you a factory or trading company?
We are a factory integrating research, development, production and sales.

Q2. What are the advantages of your products?
We support product customization to meet customer needs for special products. We can strictly control the products from raw materials to production, processing, product quality inspection, delivery, packaging, etc., and provide customers with high-end products and the most advantageous prices.

Q3. How about products price?
We are a factory, all products are direct sale at factory price. For the same price, we will provide the best quality; for the same quality, we have the most advantageous price.

Q4. What is your terms of packing?
We have branded packaging and neutral packaging, and we can also do what you want with authorization. This is flexible.

Q5. How to guarantee your after-sales service?
Strict inspection during production, Strictly check the products before shipment to ensure our packaging in good condition. Track and receive feedback from customer regularly. Our products warranty is 365 days.
Each product provides quality assurance service. If there is a problem with the product within the warranty period, the customer can negotiate with us in detail about the related claims, and we will do our best to satisfy the customer.

Q6. How can I accurately buy the products I need?
We need accurate product number, If you can’t provide product number, you can send us your product picture, or tell us your truck model, engine name plate, and so on. we will
determine exactly what you need products.

Q7. Do you accept third party inspection?
Yes.we do

Q8. How about your delivery time?
Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q9. What are your brand agency conditions and advantages?
After we sign an agent in one city, we will not sign a second company to protect the agent’s brand advantage and price advantage. And we will help the agent develop customers and solve all kinds of difficult and miscellaneous problems about products.

Q10. What is your terms of payment?
By TT or LC. We’ll show you the photos of the products and packages before you pay the balance.
