NF Bus Truck DC24V Electric Water Pump Factory Price
Product Introduction
NF industrial water pump, model HS-030-522A/HS-030-512A, offers reliable cooling and dissipating function with best quality. IP67 waterproof grade ensures durability in harsh environments, ideal for various industrial applications.
Key Specifications
| Model NO. | HS-030-522A, HS-030-512A |
| Rated Voltage | DC24V |
| Waterproofing Grade | IP67 |
| Flow Rate | ≥6000L/H (at 6m head) |
| Warranty Period | 1 Year |
| Origin | Hebei, China |
Limited Time Offer
Special discount available for bulk orders. Contact us now to get exclusive pricing and fast delivery!
Basic Info.
Packaging & Delivery
Product Description

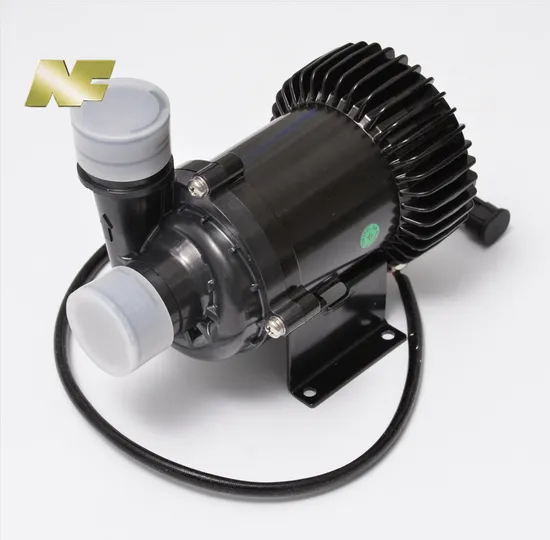

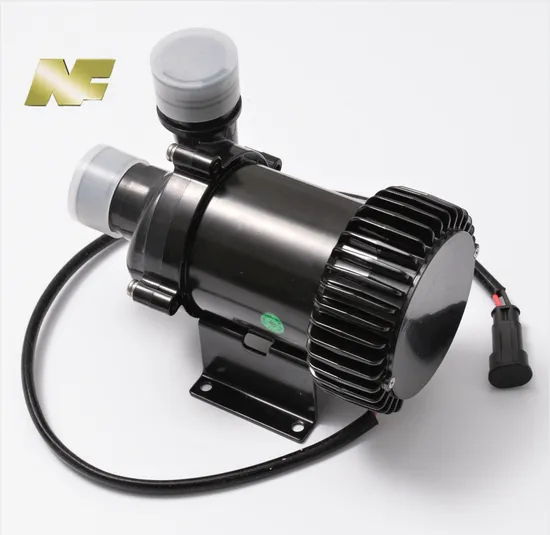

The electronic water pump produced by NF mainly consists of several parts, such as pump cover, impeller rotor assembly, stator bushing component, casing stator component, motor driving plate and heat sink back cover, which are compact in structure and light in weight.
Its working principle is that the impeller and rotor assembly are integrated, the rotor and stator are separated by shielding sleeve, and the heat generated by the rotor in the medium can be exported through the cooling medium.
So, its high working environment adaptability, can adapt to 40 ºC ~ 95 ºC environment temperature. The pump is of high strength and abrasion resistant material with a service life of more than 35000 hours.
Our Products:
https://nf-automotiveheater.en.made-in-china.com/product-list-1.html
|
Ambient temperature
|
-40ºC~+95ºC
|
|
Medium (antifreeze) Temp
|
≤105ºC
|
|
Rated Voltage
|
DC24V |
|
Voltage Range
|
DC18V~DC30V |
|
Waterproofing Grade
|
IP67 |
|
Current
|
≤11.5A (when the head is 6m)
|
|
Noise
|
≤60dB
|
|

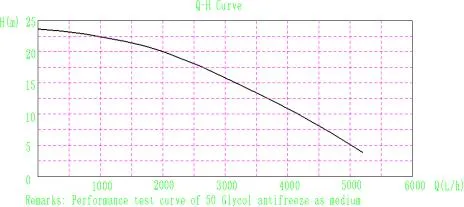

Flowing
|
Q≥6000L/H (when the head is 6m)
|
|
Service life
|
≥35000h
|
|
Pump life
|
≥20000 hours
|
1. Constant power: The water pump power is basically constant when the supply voltage dc24v-30v changes;
2. Overtemperature protection: When the environment temperature over 100 ºC (limit temperature), the pump start self protection function, in order to guarantee the life of the pump, it is recommended the installation in the low temperature or air flow better location).
3. Over-voltage protection: The pump enters DC32V voltage for 1min, the internal circuit of the pump is not damaged;
4. Blocking rotation protection: When there is entry of foreign material in the pipeline, causing the water pump to plug and rotate, the pump current suddenly increases, the water pump stops rotating (the water pump motor stops working after 20 restarts, if the water pump stops working, the water pump stops working), the water pump stops working, and the water pump stops to restart the water pump and restart the pump to resume normal operation;
5. Dry running protection: In the case of no circulating medium, the water pump will operate for 15min or less after full startup.
6. Reverse connection protection: The water pump is connected to the DC28V voltage, the polarity of the power supply is reversed, maintained for 1min, and the internal circuit of the water pump is not damaged;
7. PWM speed regulation function
8. Output high level function
9. Soft start.
Hebei Nanfeng Automobile Equipment (Group) Co., Ltd is a group company with 5 factories, that specially produce parking heaters, heater parts, air conditioner and electric vehicle parts for more than 30 years. We are the leading auto parts manufacturers in China.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100%.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
