Fast Gearbox HW10/HW19710 for Truck – Factory Price
Product Introduction
High-performance Gearbox Transmission Assembly with 12-speed and 2000 lb-ft torque capacity, made of durable Cast Iron. Compatible with Shacman F3000/F2000 and HOWO trucks, paired with Weichai engines for reliable performance.
Key Specifications
| Model NO. | HW19710 |
| Type | Torque Converter MT |
| Speeds | 12-speed |
| Torque Capacity | 2000 lb-ft |
| Material | Cast Iron |
| Applicable Truck | Shacman F3000/F2000, HOWO |
Limited Time Offer
Enjoy fast delivery within 3-7 days and secure payment via T/T or Western Union. ISO9001 certified quality at competitive prices!
Basic Info.
Packaging & Delivery
Product Description

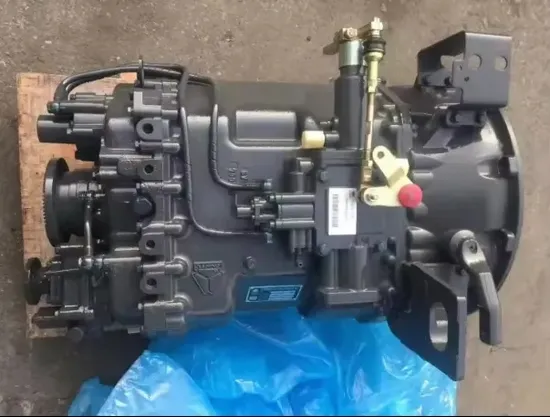

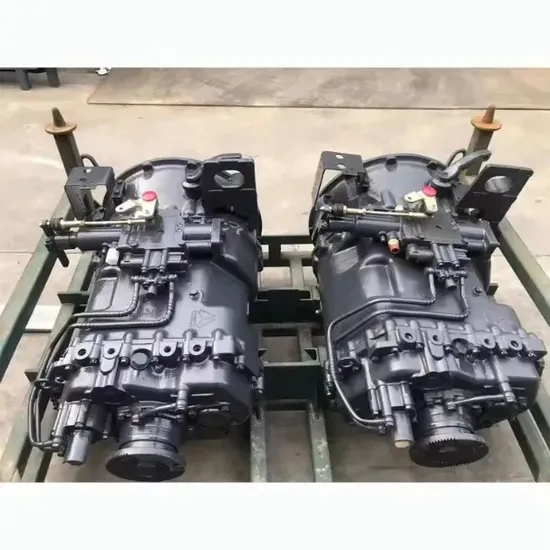

Sinotruk HOWO Truck Parts Transmission Hw19710090610 Hw19710 Gearbox
HW19710 Transmission – Technical Overview
The HW19710 is a heavy-duty manual transmission widely used in commercial trucks and buses. It features 10 forward gears + 2 reverse gears, optimized for high torque and fuel efficiency. With a robust cast-iron housing, it supports engines up to 400+ HP and torque inputs of 1,900-2,200 N·m. Its synchronized design ensures smooth shifting, while compact dimensions (~1,200 à 800 à 800 mm) and weight (~400 kg) facilitate integration. Common in Chinese heavy-duty vehicles (e.g., Sinotruk, Shaanxi Auto), it is designed for durability in long-haul and construction applications.
Tech Parameters
|
Transmissiom Model |
HW19710 |
Installation Length |
843 |
|
|
Type |
10 forward gears, 1 reverse gear (Three section shell) |
|||
|
Max Input Torque |
1900N.m |
Maximum Output Speed |
2600rpm |
|
|
Gearbox Ratios |
Gears |
Speed Ratio |
Gears |
Speed Ratio |
|
1 |
14.28 |
6 |
3.26 |
|
|
2 |
10.62 |
7 |
2.43 |
|
|
3 |
7.87 |
8 |
1.8 |
|
|
4 |
5.87 |
9 |
1.34 |
|
|
5 |
4.375 |
10 |
1 |
|
|
|
Reverse Gear |
13.91 |
|
|
|
Lubrication |
Splash lubrication of main tank, forced lubrication of secondary tank |
|||
|
Lubricant Grade |
85W/90GL-4 or 85W/90GL-5 |
|||
|
Fuel Quantity |
12L (12.5L if including the PTO) |
|||
|
Purpose
|
for replace/repair
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Condition
|
New
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model NO.
|
19710
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Type
|
Transmission Assembly
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Size
|
standard
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Place of Origin
|
China
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Truck Model
|
Howo
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Name
|
Gearbox assembly
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application
|
Heavy Truck Parts
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Part Name
|
Gearbox assembly
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
