Electric Dumper Tarp System w/Aluminum Arms Factory Price
Product Introduction
The 800 flip tarp system is a custom-style dumper tarp system with a powder-coated aluminum structure, featuring a bolt-on installation method. Equipped with optional 12V/24V gearbox motor and rotary switch, it ensures efficient operation. The mesh tarp and aluminum components provide durability for various transport needs.
Key Specifications
| Model NO. | 800 flip tarp system |
| Type | Dumper Tarp System |
| Material | Aluminum |
| Installation | Bolt-on |
| Gearbox Motor | 12V/24V Optional |
| Tarp | Mesh |
Limited Time Offer
Special discount available for custom orders. Contact us now to get exclusive pricing on your dumper tarp system purchase!
Basic Info.
Product Description

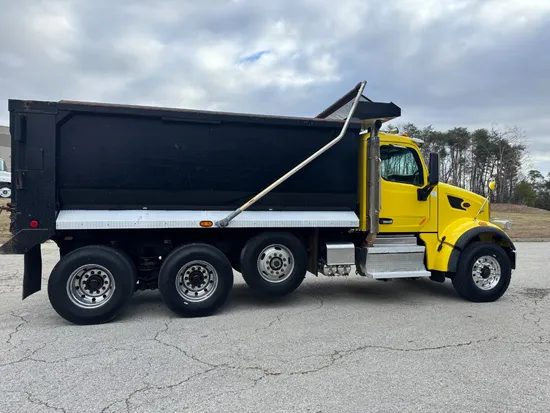

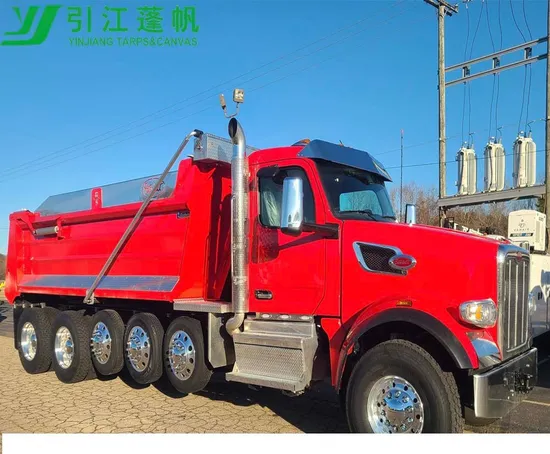

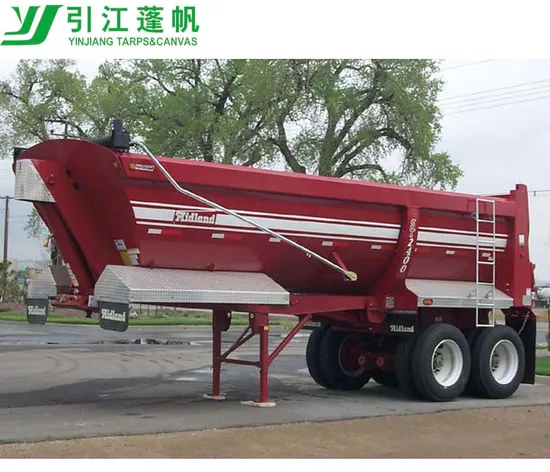

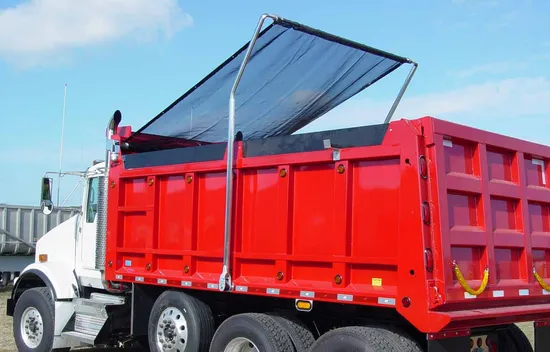

Electric Dumper Tarp System with Aluminum Arms
-
ELECTRIC DUMP TRUCK TARP SYSTEM FEATURES:
- Wind deflector included (optional upgrade to 97″ or 103″ aluminum housing)
- Bolt-on assembly – no welding required
- Choice of Polished aluminum rust-proof arms or HD Steel Arms
- Adjustable for lengths up to 24′
- Easy installation
| Place of Origin | Jiangsu, China |
| Type | dumper tarp system |
| Size | Custiomized |
| Material | Aluminum+mesh tarps |
| Brand Name | YJTC TARP SYSTEM |
| Model Number | 800 |
| Gearbox Motor | 12V/24V |
| Switch Type | Rotary Swith |
| Battery wire | GA6/8 dual conductor |
| wind deflector | Alumium |
| Tarp | Mesh |
| Tarp Axle | Alumium |
| Spring | Torsion Spring |
| Corner | 90, 30, 45 degree |
| Packaging Details | Packed in wooden cases |
| Port | shanghai |
Kit Includes:-
(1 Pcs) Aluminum Tarp Arm Kit for 4-Spring Electric Dump Truck Flip Tarp System – Up To 24′ Bed
- Material: Aluminum Alloy
- Color: Metallic Silver
- Bed Coverage: Up To 24′ in Length
Includes
- Telescopic Upper Arm w/ 90 Degree Corner (2)
- Plastic Tarp Centering Flanges (2)
- 103″ Telescopic Cross Tubes (1)
- 78″ Lower Arms (2)
- Spiral Torsion Springs (8)
- Pivot Pin for 4 Spring (2)
- Hardware for Assembly
9. side plates (2)
10. Tarp spool (1)
11. Bearing (1)
12. short shaft (1)
(1 Pcs) 7′ x 24′ PVC Mesh Tarp for Dump Trucks – Double Pocket
- Size: 7 ft x 24 ft.
- Coated 11 x 11 Mesh
- Shade rate is 50%
- Top 5″ Pockets Made with 18 Oz Vinyl
- Bottom Pocket 2-1/2″ 10 oz PVC Mesh (This may vary due to hemming)
- Vinyl Tough solid #4 brass grommets clinched every two feet
- All hems are re-enforced with 2″ thick polyester webbing
- PVC MESH Pockets w/ Grommets on the Rear End allow use of Anti-Sail Bar or bungee to keep back secure.
Y&J Tarp System
Established in 1993, Yangzhou Yinjiang Canvas is a high-tech enterprise specializing in the design, development, and manufacturing of innovative tarp systems, side curtains, truck superstructures, and logisticequipment. , the company serves industries such as trucking, agriculture, transportation, and waste management.
Core Offerings:
Tarp Systems &. Side Curtains: Designed to securely contain and protect payloads, enhance driver safety, andsimplify truck/trailer operations.
Custom Solutions: OEM/ODM services to meet specific client requirements, supported by a skilled engineeringteam and numerous national patents (e.g., sliding tarp systems, logistic equipment).Accessories: Additional products like toolboxes, bulkheads, headache racks, and aerodynamic devices toimprove storage, security, and fuel efficiency.
Key Strengths:
Innovation & Quality: Strong R&D focus, strict quality control, and a set of patents ensure cuting-edge, reliable
solutions.Global Reach: Recognized as a leading global supplier, adhering to international standards and trusted byclients worldwide.
Customer-Centric Approach: Competitive pricing, on-time delivery, and dedicated post-sales support.
Recent Expansion:
A newly constructed modern facility enhances production capacity, enabling the company to better meet growingcustomer demands.
Vision:
Yinjiang Group aims to foster long-term partnerships, leveraging its expertise to deliver tailored solutions anddrive innovation in the logistics and transportation sectors.
